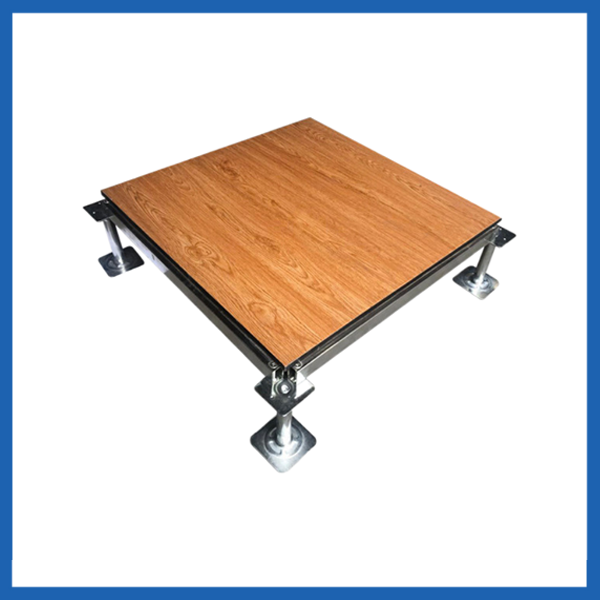

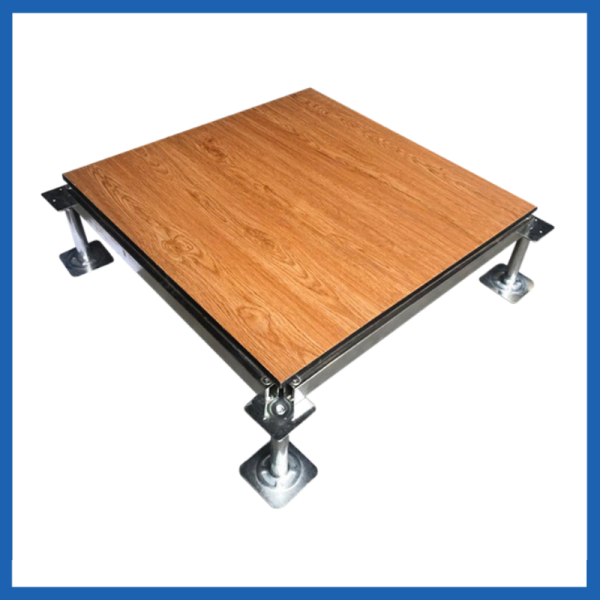

The structure of ceramic raised floor is similar to that of ceramic anti-static floor. The system is usually composed of floor, beam, support and main parts. The crossbeam and its height adjustable bracket are connected with screws to form a stable lower support system, and the floor is inlaid into the square enclosed by the crossbeam.
The designs and colors are: Yellow polycrystalline, white polycrystalline, wood grain, carpet grain, etc.
Anti static ceramic decors: small orchids, small yellow flowers, marbling, gray system.
Beam: all steel floor supporting beam is divided into long beam and short beam. Specification of long beam: 21 × 30/32 × 1173mm, short beam specification: 21 × 30/32 × 573mm； The surface is galvanized and rust proof. The wall thickness of the beam can also be customized for places with different bearing capacity requirements.
Support: it is usually divided into standard support, reinforced support and super strong support. In addition, there are two special-purpose brackets: slope bracket and edge closing bracket.
Standard support: it is composed of upper support plate, screw, lock nut, support pipe and lower support plate, and the support pipe is generally 22 × 22mm square tube Φ 22mm round pipe, with galvanized surface, has good rust prevention and corrosion resistance.
Reinforced support: compared with the standard support, it has better bearing performance. The diameter of support pipe is usually Φ 25mm、 Φ 28mm、 Φ 32mm。
Super strong support: mainly used in places with high requirements for bearing performance and overhead height. The diameter of support pipe is Φ 38mm、 Φ 45mm、 Φ 73mm, etc.
Slope support: mainly used for the production of slopes.
Edge trimming support: mainly used for the treatment of floor edges
Other auxiliary accessories include diagonal brace, tie rod and hoop as auxiliary connectors of the support, which are generally used with super high and super strong supports to enhance the stability of the floor installation structure. Screws, suction cups, wiring boxes, etc.

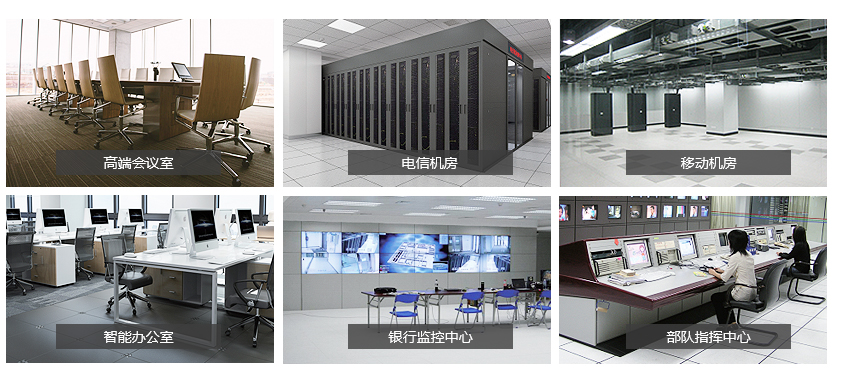

It is widely used in electronic computer room, satellite ground station machine room, radio control room, TV transmitting station control room, microwave communication station machine room, program-controlled switching machine room, clean workshop, electronic instrument factory assembly workshop, confidential optical instrument manufacturing workshop, hospital, school and other occasions with static electricity prevention requirements, large and medium-sized computer rooms of electronic computers, communication machine rooms represented by switches, military and economic controlled by computers, National security, aviation, aerospace and transportation.
